Osteochondral Autograft Transfer System (OATS)

In my practice, I often see patients who have knee pain that does not match what they expect from a “simple strain.” They may have swelling after activity, pain during stairs or squatting, or a catching sensation inside the joint. Sometimes the underlying problem is a focal cartilage defect or osteochondral lesion. In selected patients, one of the cartilage-restoration procedures I may discuss is the Osteochondral Autograft Transfer System, commonly called OATS. [1][2]

One important point I want Bangladeshi patients to understand is this: OATS is not a treatment for every painful knee, and it is not a treatment for general arthritis. It is usually considered for a more specific problem, where a limited area of cartilage and underlying bone has been damaged and the rest of the joint is still reasonably preserved. [1][2]

For patients in Dhaka and across Bangladesh, this distinction matters. Many people hear the word “cartilage damage” and assume they either need a major operation or that nothing can be done. Neither assumption is always correct. The right treatment depends on the size of the lesion, the location, the age and activity of the patient, the condition of the rest of the joint, and whether conservative treatment has already failed. [1][2]

What OATS means

OATS stands for Osteochondral Autograft Transfer System. In simple terms, it is a cartilage-restoration surgery in which a small plug of the patient’s own healthy cartilage and underlying bone is taken from a lower-load area of the joint and transferred into a damaged area. [2]

Why this procedure is different

I usually explain to my patients that the main advantage of OATS is that it transfers real hyaline cartilage along with the supporting bone underneath it. That is important because hyaline cartilage is the normal smooth cartilage that helps joints tolerate repetitive loading. [2]

This is different from some other methods that stimulate healing with fibrocartilage, which is useful in some settings but not the same as native hyaline cartilage. [2]

What type of problem OATS is meant to treat

OATS is usually used for focal full-thickness cartilage defects or osteochondral lesions, most often in the knee. [1][2]

Common situations where I may think about OATS

  • a localized cartilage defect after trauma
  • a symptomatic osteochondral lesion
  • selected cases of osteochondritis dissecans
  • persistent pain after a cartilage injury that has not improved with proper non-surgical care

This is not usually the right operation for:

  • widespread knee arthritis
  • diffuse cartilage loss across the whole joint
  • major “kissing lesions” affecting both sides of the joint surface
  • inflammatory joint disease
  • active infection

StatPearls and AAOS both make it clear that cartilage-restoration procedures work best in selected patients with focal lesions rather than global arthritic damage. [1][2]

Who may be a good candidate

Patient selection is one of the most important parts of success.

General candidate profile

The best candidates are often:

  • younger or biologically active patients
  • patients with a single symptomatic focal lesion
  • people without advanced arthritis
  • patients with a stable, reasonably aligned joint
  • those who have not improved enough with non-surgical treatment

AAOS notes that many candidates for cartilage restoration are young adults with a single injury or lesion. [1] StatPearls also notes that OATS is typically considered for focal lesions, often in patients younger than 45 years and in good physical condition, especially when the rest of the joint is not generally worn out. [2]

Lesion size matters

This is one of the most practical decision points. OATS is often most suitable for smaller to medium-sized focal defects rather than very large areas of damage. StatPearls notes that many reports consider full-thickness lesions roughly between 1 cm and 2.5 cm in diameter appropriate for osteochondral autograft transplantation. [2]

In simple language, OATS is usually more attractive when the problem is localized enough to repair with one or several plugs, but not so large that another approach becomes more practical.

Why a patient may still need treatment even if the MRI just says “cartilage defect”

Many patients in Bangladesh come with MRI reports and ask whether the report alone decides surgery. It does not.

When I evaluate patients with this problem, I want to know:

  • where the pain is
  • whether there is swelling after activity
  • whether the knee catches or locks
  • whether the lesion is clearly focal or part of broader degeneration
  • whether there are associated meniscus or ligament injuries
  • whether the patient can still work, pray, climb stairs, and walk confidently

An MRI helps a lot, especially for lesion size and depth, but the treatment plan comes from the full clinical picture, not one scan sentence.

How OATS is performed

The operation may be done arthroscopically or with an open approach depending on the lesion location and access. [2]

Basic surgical idea

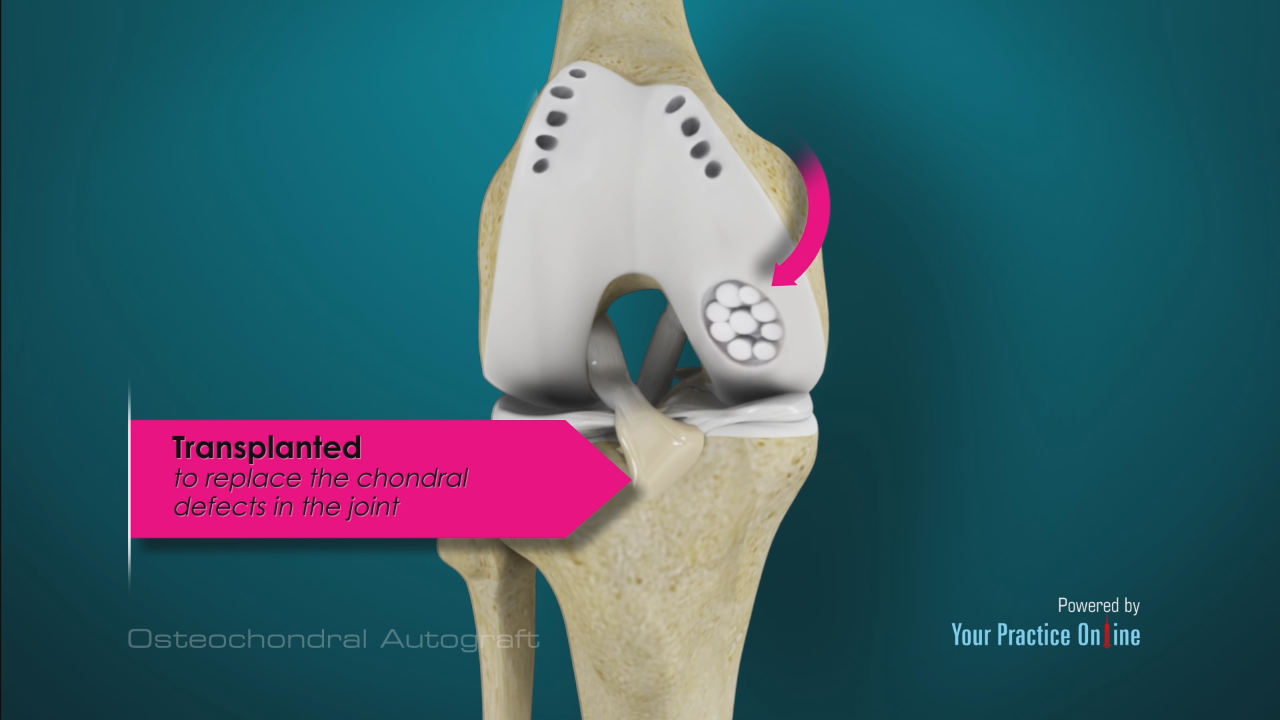

The damaged area is prepared carefully. Then one or more osteochondral plugs are harvested from a lower-weight-bearing part of the same knee and transferred into the defect. [2]

The goal is to:

  • restore the smooth joint surface
  • fill the damaged area with healthy cartilage and supporting bone
  • improve symptoms
  • reduce the risk of ongoing damage from an unstable or exposed defect

If a single larger plug is used, the donor and recipient surface shape should match well. If several smaller plugs are used, this is often called mosaicplasty. [2]

Where the graft comes from

This is an important practical point for patients.

Because OATS uses an autograft, the graft comes from the patient’s own body, usually from a lower-contact area in the same knee. StatPearls notes that common donor areas include the medial or lateral trochlea. [2]

Why this matters

Using the patient’s own tissue avoids donor-matching issues and provides living osteochondral tissue in a single-stage procedure. [2] But it also means that graft harvesting creates a donor site, and that donor site must be respected as part of the overall recovery and risk discussion.

What are the advantages of OATS?

I usually explain the benefits in practical terms.

Main potential advantages

  • uses real hyaline cartilage rather than only fibrocartilage repair tissue [2]
  • single-stage procedure in many cases [2]
  • useful for focal symptomatic lesions in carefully selected patients [1][2]
  • can restore both cartilage and subchondral bone together

This makes OATS particularly attractive when the defect is too significant to ignore but still localized enough for autograft transfer.

What are the limitations or downsides?

No cartilage procedure is perfect, and I prefer to be very honest about this.

Important limitations

  • only a limited amount of donor tissue is available
  • donor-site symptoms can occur
  • very large defects may need a different strategy
  • the graft must sit at the correct level and position
  • the rest of the knee must also be addressed properly

Knee Care by Dr. Md. Iftekharul Alam

StatPearls notes that graft prominence or recession can create problems, and that donor cartilage can be damaged during insertion if technique is poor. [2] Donor-site morbidity is also a known issue in the osteochondral autograft literature, which is one reason why patient selection and surgical planning matter so much. [3]

OATS versus other cartilage procedures

Patients often search online and find many terms: microfracture, OATS, mosaicplasty, OCA, ACI, MACI. This can be confusing.

OATS versus microfracture

Microfracture has historically been used for smaller defects, but it stimulates fibrocartilage repair rather than transplanting native hyaline cartilage. [2] A meta-analysis comparing osteochondral autograft transfer with microfracture reported that OAT may provide higher activity levels and lower failure risk than microfracture for cartilage lesions greater than 3 cm² in the knee at midterm follow-up. [4]

That does not mean microfracture is never useful. It means the choice depends on lesion size, patient goals, and the type of tissue we want to restore.

OATS versus allograft procedures

For larger defects, osteochondral allograft can become more relevant because it avoids the donor-site limit of autograft and can cover larger areas. [2][5]

OATS versus cell-based cartilage procedures

Some larger or more complex lesions may be better suited to cell-based restorative options, especially when the defect is beyond the comfortable size range for autograft transfer. [2]

How I assess a patient before recommending OATS

Before discussing surgery, I assess not only the lesion itself, but the entire knee.

Clinical assessment

I look at:

  • alignment
  • ligament stability
  • meniscus status
  • swelling pattern
  • range of motion
  • mechanical symptoms
  • activity goals

Imaging assessment

Typical workup may include:

X-rays

X-rays help assess alignment, arthritis, and associated bone issues.

MRI

MRI is usually the key imaging study for cartilage depth, defect size, location, and associated injuries. StatPearls notes that MRI is routinely used because plain radiographs are not sensitive or specific for detecting cartilage defects. [2]

If the knee has major malalignment, instability, or meniscal deficiency, that must also be factored into the treatment plan. A cartilage procedure works better when the surrounding joint mechanics are also appropriate.

Recovery after OATS

This is the part many patients underestimate.

Early recovery

The first phase usually focuses on:

  • protecting the grafted area
  • controlling swelling
  • careful range-of-motion progression
  • guided weight-bearing progression
  • pain management

Rehabilitation goals

Rehabilitation is important because we are not only healing a wound. We are protecting a transplanted osteochondral plug while restoring function. Patients typically need a structured physiotherapy program to work on:

  • knee motion
  • muscle activation
  • quadriceps strength
  • walking pattern
  • balance and control
  • later return to running or sports when appropriate

For Bangladeshi patients, I also discuss practical issues like climbing stairs at home, commuting in traffic, using public transport, prayer movement, and whether the patient’s work involves prolonged standing or physical labor.

How long does recovery take?

Recovery depends on lesion size, location, associated procedures, and how well rehabilitation progresses.

I usually explain recovery in stages, not in a single fixed number. Some patients feel better earlier than they are truly ready. That is important. Feeling less pain does not always mean the graft is ready for impact loading, squatting, or sports.

Patients with physically demanding jobs in Dhaka may need careful planning about when to return to work safely.

What outcomes can patients realistically expect?

I try to balance hope with realism.

StatPearls notes that successful outcomes may be achieved in around 72% of patients at 10 years when osteochondral autografting is performed correctly. [2] More recent outcome data also show meaningful improvement in knee scores over time in appropriately selected patients. [6]

That said, results depend on:

  • proper patient selection
  • lesion size and location
  • surgical technique
  • joint alignment and stability
  • rehabilitation quality
  • realistic activity expectations

This is not a guaranteed cure for every kind of knee pain. It is a joint-preserving surgery for specific lesions.

Possible risks and complications

Like any operation, OATS has risks.

Possible complications include:

  • donor-site pain or symptoms
  • graft mismatch or prominence
  • graft loosening or failure
  • stiffness
  • persistent swelling
  • infection
  • incomplete pain relief

I usually explain to my patients that donor-site issues are one of the tradeoffs of using your own cartilage. This does not mean the procedure is a poor choice. It means the indication must be strong enough to justify that tradeoff. [2][3]

When I do not think OATS is the right answer

OATS is not the best choice for every cartilage complaint.

I become more cautious when there is:

  • generalized osteoarthritis
  • multiple degenerative surfaces
  • significant joint space narrowing
  • inflammatory arthropathy
  • large diffuse cartilage loss
  • major biomechanical problems that are not being addressed

In these situations, another treatment path may be more sensible than trying to solve a broad joint problem with a focal cartilage plug.

Practical advice for Bangladeshi patients and families

One important point I want Bangladeshi patients to understand is that successful cartilage restoration needs patience.

I usually advise patients to plan for:

  • regular follow-up
  • consistent physiotherapy
  • transport support during the early phase if needed
  • temporary changes in work or study routine
  • caution with stairs and squatting
  • not rushing back to sports or gym activity

Many patients in Bangladesh are used to pushing through pain. With a cartilage-restoration procedure, that mindset can become a problem. Rehabilitation should be progressive, not impatient.

Related Topics

References

  1. American Academy of Orthopaedic Surgeons. Articular Cartilage Restoration. Available at: https://www.orthoinfo.org/en/treatment/articular-cartilage-restoration/
  2. StatPearls. Osteochondral Autograft Transplantation. NCBI Bookshelf. Available at: https://www.ncbi.nlm.nih.gov/books/NBK560655/
  3. Ansah-Twum J, McEllin B, Nielsen D, Griffin J, Kennedy N, Spalding T, Getgood A. Knee donor-site morbidity after mosaicplasty: a systematic review. J Exp Orthop. 2016;3:31. Available at: https://link.springer.com/article/10.1186/s40634-016-0066-0
  4. Tan SHS, Hui JH, Lim AKS, Lee EH. Osteochondral Autograft Transfer Versus Microfracture in the Knee: A Meta-analysis of Prospective Comparative Studies at Midterm. Arthroscopy. 2018;34(2):561-570. Mayo Clinic record available at: https://mayoclinic.elsevierpure.com/en/publications/osteochondral-autograft-transfer-versus-microfracture-in-the-knee/
  5. StatPearls. Cartilage Graft. NCBI Bookshelf. Available at: https://www.ncbi.nlm.nih.gov/books/NBK559245/
  6. Midterm Outcomes of Primary Osteochondral Autograft Transfer for Symptomatic Chondral Defects of the Knee. PubMed record available at: https://pubmed.ncbi.nlm.nih.gov/41552618/

FAQs BY PATIENTS

OATS is a surgery where a small piece of healthy cartilage and bone is taken from one part of your knee and transferred to a damaged cartilage area to help restore the joint surface. [2]

Usually no. OATS is generally for focal cartilage or osteochondral defects, not for widespread knee arthritis. [1][2]

The main factors are your symptoms, lesion size, lesion location, age, condition of the rest of the knee, and whether you have already tried appropriate non-surgical treatment. MRI and clinical examination are both important.

OATS transfers real hyaline cartilage and bone, while microfracture stimulates a healing response that produces fibrocartilage. The best option depends on the lesion and the patient. [2][4]

Yes. In the autograft version, the graft comes from your own knee, usually from a lower-load area. That is why donor-site considerations are part of the discussion. [2][3]
